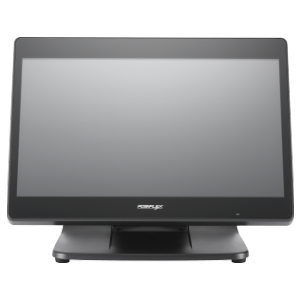

The PS-3616E is a high-performance fanless touch terminal designed to deliver reliable operation with low power consumption. Featuring a 15.6” widescreen flat capacitive touchscreen, it provides an intuitive and responsive user experience for demanding commercial environments.
Innovative and Efficient Design
Its patented fanless architecture eliminates moving parts, reducing noise, energy consumption, and the risk of mechanical failures, making it ideal for continuous professional use.
Powerful Performance
Powered by an Intel J6412 Quad-Core processor, 8GB of DDR4 RAM, and a 128GB M.2 SSD, the PS-3616E ensures fast and smooth system performance. Shared graphics memory of up to 224MB delivers reliable visual processing for POS and business applications.
Flexible Touchscreen Display

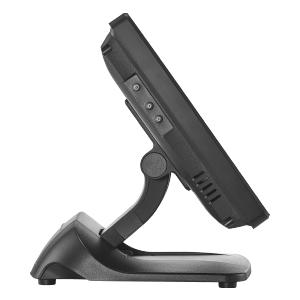

The 15.6” TFT display with flat capacitive touch technology can be adjusted from 0° to 180°, allowing comfortable viewing from virtually any angle. Its internal architecture features processor-independent controllers, improving overall system stability and efficiency.
Extensive Connectivity
The PS-3616E is equipped with a wide range of interfaces for seamless integration into retail and hospitality environments, including:
5 USB ports (including 2 x USB 3.0)
1 Ethernet port (10/100/1000)
4 RS232 serial ports (with optional +5V power support)
1 additional VGA output
1 cash drawer port (CR)
Expansion Options
The terminal can be customized with a variety of optional peripherals, such as:
Customer display
Magnetic stripe reader or fingerprint reader
Secondary monitor
Keyboards, cash drawers, and receipt printers
Operating System
Compatible with Windows 10/11 IoT, providing the stability and security required for professional business environments.
Features
Touch type: Flat Capacitive
Cooling: Fanless
Screen size (inches): 15.6
Operating System: Windows 11 IoT
Wall mounting: VESA compatible
Components
Processor: J6412
RAM (GB): 8
Hard drive type: SSD
Hard drive capacity (GB): 128
Communication ports
USB: 2 x USB 3.0, 3 x USB 2.0
RS232: 3 x DB9, 1 x RJ50
Parallel: Optional
Ethernet: 1 x 10/100/1000
WiFi: Optional USB
PS2: Optional
Second display: 1 x VGA
Audio: Not available
Direct cash drawer port: x1
Scanner: Not available
